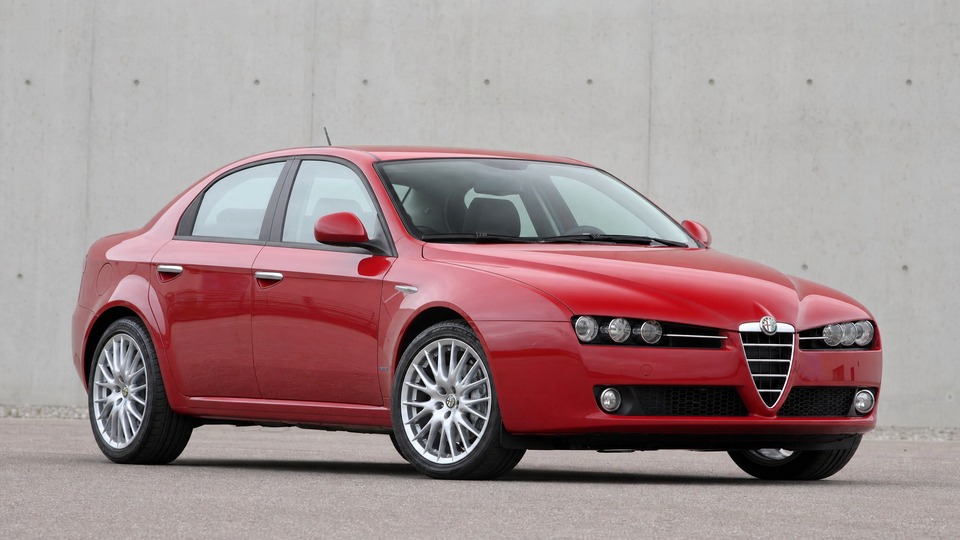

Alfa Romeo 159 3.2 V6 939

The 3.2 JTS V6 inherited timing chain vulnerability from its GM High Feature engine origins. The engine has fine oil galleries that clog with sludge when oil changes are infrequent, starving the chain tensioners. Unlike the 2.2 JTS, the 3.2 V6 timing chain replacement requires removing the engine from the car because the chains are at the rear of the engine block with no access from above. Parts (chain kit with guides, tensioners, and variator gears) cost approximately 1,000-1,200 euros. Labour for engine removal, chain replacement, and reinstallation is typically 8-12 hours, bringing total cost to 2,000-3,500 euros at a specialist. If chains have already skipped and caused valve damage, costs can reach 4,000 euros or more. The issue is less common than on the 2.2 JTS but well documented, typically appearing after 120,000-160,000 km. Prevention: change oil every 10,000 km maximum with fully synthetic oil, and have the chains inspected by a specialist familiar with this engine. Fault codes P0010, P0011, P0013, P0014, and P0016 indicate cam timing deviation.

The 3.2 V6 has a well-documented and recurring problem with ignition coil failure, almost always affecting cylinder 4 first. Multiple alfaowner.com threads describe the same pattern: the coil melts or burns out, is replaced, and fails again within weeks or months regardless of brand (OEM Bosch, aftermarket, or used). The root cause appears to be a combination of high heat in the area around cylinder 4 and potentially faulty mechanically pressed connections in the wiring harness for bank 1 coils. Individual coils cost 30-50 euros aftermarket or 80-100 euros for genuine Bosch units. If the underlying wiring harness issue is also addressed, repair costs increase to 400-600 euros. Over-tightening the coil fixing screw (correct torque: 6 Nm) can crack the insulator housing and accelerate failure. The V6 has 6 coils total, and most owners report needing to replace several during ownership.

The Q-Tronic automatic (Aisin TF-80SC 6-speed) is a complex unit that is very sensitive to oil temperature and condition. Sticky solenoids are the most common failure, causing clunky 2nd-to-3rd shifts, delayed engagement, and in severe cases redline RPM spikes before gear engagement. The gearbox oil degrades with heat, and the factory Laminova water-cooled cooler is insufficient for spirited driving. Oil viscosity drops dramatically above 90 degrees celsius, causing solenoid malfunction. A valve body repair at a transmission specialist costs 800-1,200 euros. Full gearbox rebuild ranges from 2,000-2,500 euros. A software update is available that addresses some shifting issues and torque limiters. DIY oil changes are strongly discouraged as the fill procedure requires exact measurement with specialist tools. Only affects Q-Tronic-equipped cars; manual gearbox cars are not affected by this issue.

The 159 front subframe has notoriously poor factory corrosion protection. Stone chips remove the wafer-thin paint, and exposed steel rusts quickly in northern European climates with road salt. In severe cases, the subframe develops structural weakness and holes, leading to MOT/TUV failure. This affects all 159 variants regardless of engine. Pre-2010 models without drainage holes are worst affected. Preventive treatment (wire brushing, rust converter, and wax oil) costs 150-200 euros. If removal is needed for professional blasting and powder coating, expect 500-1,500 euros. Full replacement with a new subframe and labour costs 1,000-1,500 euros. Cars from southern European climates are typically much less affected. This should be the first thing inspected from underneath any 159.

Early 159 models (2005-2008) have a power steering fluid reservoir with a loose internal baffle that causes fluid to froth, starving the pump. This creates groaning noises at low speed and accelerates wear on both the pump and rack. Replacing the reservoir and switching to the correct Tutela GI/R green fluid (replacing the original GI/E red fluid) costs 50-120 euros and is an effective preventive measure. If the pump or rack are already damaged, a reconditioned steering rack costs 350-500 euros plus 200-400 euros labour. A new OEM rack runs 900-1,200 euros fitted. Power steering pump replacement costs 300-500 euros. Post-2009 cars with the updated reservoir and fluid specification are less prone.

On Q4 all-wheel-drive models, the propshaft center bearing rubber mounting degrades over time, typically after 80,000-130,000 km. The rubber housing tears and the bearing begins to move, causing vibration and a rumbling noise at motorway speeds. A clamping bearing replacement solution exists that can be fitted in 20 minutes without removing the driveshaft, costing approximately 200-300 euros. Traditional repair involving propshaft removal and specialist bearing replacement costs approximately 350-450 euros. A new complete propshaft from Alfa is expensive at over 1,000 euros but is rarely necessary. This issue only affects Q4 models; front-wheel-drive 3.2 V6 models have no propshaft.

The 3.2 V6 has four VVT solenoids (intake and exhaust on each bank) that control the cam phasers. These solenoids are sensitive to contamination from hard carbon particles entering through the breather system. When cold, higher oil viscosity can prevent the locking pin in a phaser from releasing properly, causing the cam timing to remain locked in the start position until oil reaches operating temperature. Symptoms include sluggish performance when cold and P0017/P0018/P0019 fault codes. Swapping solenoids between positions can help diagnose whether the fault follows a specific solenoid. Individual solenoids cost 50-120 euros each. Replacement is relatively straightforward as they are accessible from the top of the engine. Using correct specification fully synthetic oil and frequent oil changes helps prevent this issue.

The 159 is notorious for rapid front inner tyre wear. The 3.2 V6 variant is particularly affected due to its higher weight compared to the 4-cylinder models. The upper wishbone bush fails first, producing a rattle over bumps. The lower wishbone inner bush is hollow and flexes, contributing to toe change under braking. Factory toe-out settings aggravate the problem. Replacement upper wishbones (bushes are not sold separately) cost 200-350 euros per pair. Lower bush replacement with Powerflex polyurethane bushes costs 200-400 euros. Four-wheel alignment to corrected specifications (zero toe instead of factory toe-out) is essential and costs 80-120 euros. Budget for this repair at least once during ownership, as it directly affects tyre life and handling safety.

Water ingress into the passenger footwell is a well-documented 159 issue with multiple potential entry points. The three scuttle drain holes can become blocked with debris, allowing water to overflow into the cabin via the wiring loom entry point. The inner door panel waterproof membranes can peel away or develop gaps, allowing water past the outer door seal to reach the interior. Water can also travel from near the bonnet hinges along a body channel into the rear footwell. Diagnosing the source requires methodical checking of each potential entry point. Scuttle drain clearing is free. Resealing door membranes with dum-dum strip costs 50-100 euros. More extensive scuttle repairs with new sealant cost 200-500 euros. Left untreated, water ingress causes carpet rot, electrical faults, and musty odours.
