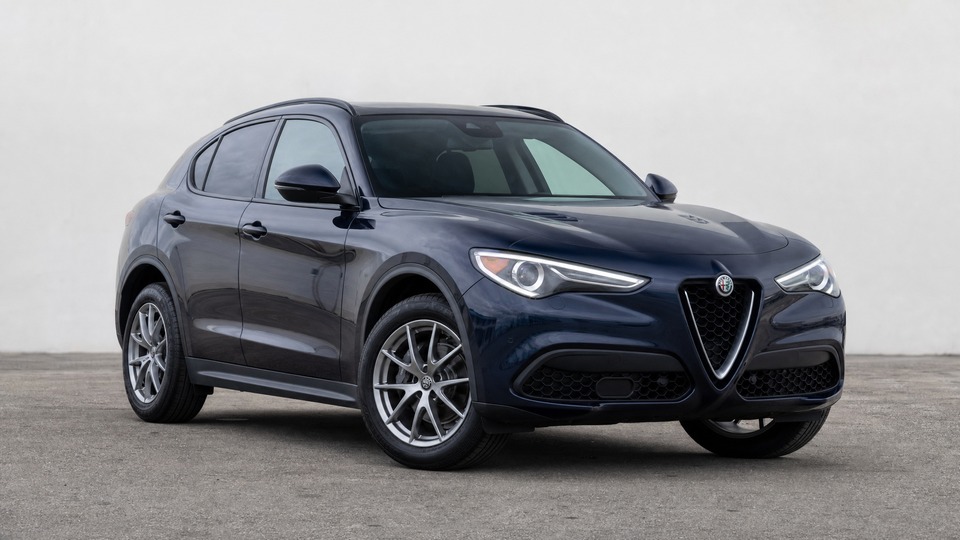

Alfa Romeo Stelvio 2.2 Diesel 949

The most common Stelvio issue across all variants. The IBS (intelligent battery sensor) on the negative terminal can fail, causing parasitic drain. The Bluetooth module and infotainment system can remain active after parking, and the alarm system can draw up to 200 mA versus the normal 20-50 mA. Water ingress behind the front splash guards can corrode wiring looms, causing measured drains well above acceptable levels. The engine ground strap at the rear of the transmission is prone to corrosion in countries using road salt, which triggers cascading electrical faults. Early 2017-2018 cars are worst affected; post-2019 models are improved. The WhatCar reliability survey found 16% of owners reported 12V battery issues and 11% reported non-engine electrical faults. Fixes include replacing the IBS sensor (€150-300), upgrading to a larger AGM battery, using a battery tender when parked for extended periods, and inspecting the ground strap and wiring connectors for corrosion.

The oil pickup pipe in the sump is sealed to the oil pump with an axially pressed rubber piece. Over time and heat cycles, this seal deteriorates and allows air into the oil system, reducing oil pressure. This is particularly dangerous during hard acceleration when oil demand is highest. The problem is inherited from earlier JTD engines and is well documented on the Giulia and Stelvio 2.2. The seal itself costs very little, but the repair requires dropping the sump, making it labour-intensive at €500-1,200. An aftermarket modification by JTD Performance replaces the axial seal with a radially-mounted Viton O-ring setup, which is far more durable. Symptoms include intermittent low oil pressure warnings, especially during spirited driving. If ignored, engine bearing damage can result.

The EGR valve on the 2.2 MultiJet II progressively clogs with carbon and oil residue, particularly on cars driven predominantly on short trips or in urban conditions with frequent cold starts. Fault codes P046E (EGR position deviation) and P045A (EGR valve control open) are commonly reported. Symptoms include rough idle, reduced power, increased fuel consumption, and a check engine light. In some cases, water ingress into the wiring loom under the ECU has caused corrosion on the EGR relay and associated connectors, mimicking EGR valve failure. Cleaning the EGR valve and intake manifold costs €200-400, while replacement runs €400-800. Regular motorway driving at sustained speeds helps prevent excessive build-up. Some specialists recommend more frequent oil changes for city-driven vehicles.

The DPF on the Stelvio 2.2 normally lasts 180,000-200,000 km under proper driving conditions. Cars used primarily for urban driving experience incomplete regeneration cycles, leading to soot accumulation. The particulate matter sensor can also fail, showing 100% soot loading even after regeneration, which has been traced to a relatively inexpensive sensor (around €60-100 for the part, shared with Fiat Doblo). When the filter becomes genuinely blocked, a forced regeneration via diagnostic tool costs €100-200. Chemical cleaning runs €300-500, and full DPF replacement costs €1,500-2,000. Alfa Romeo specifies low-SAPS oils (ACEA C2, 0W-30) for a reason - using incorrect oil accelerates DPF clogging significantly. Regular motorway runs of 20+ minutes at steady speed are essential.

Post-2018 Euro 6d-temp models use an SCR system with AdBlue injection. The system components (pump, heater, NOx sensor, injector) can fail. NOx sensors are particularly expensive at €300-500 per sensor, and the upstream sensor fails more often. When the system detects a fault, a countdown (typically 2,400 km) begins after which the engine will not restart. The AdBlue heater element can fail in cold climates, preventing the system from operating. Full AdBlue pump or tank replacement can reach €1,000-2,000. Excessive AdBlue consumption is an early warning sign. This system is common across all modern Euro 6 diesels and is not unique to Alfa Romeo.

The electronic parking brake uses electric motors integrated into the rear calipers. The first section of wiring loom that plugs directly into the motor is a known weak point - the plastic sheathing on the wires cracks over time and allows water ingress, corroding the copper cable inside. A broken wire in the harness is a common finding. If the wiring is the issue, repair costs are modest (€100-200). If the electric motor itself fails, caliper replacement runs €400-700 per side. Some owners report the EPB getting stuck, requiring manual retraction through the infotainment service menu. The issue can be diagnosed by disconnecting the motor and testing continuity through the loom.

The intake manifold swirl flaps can become stuck or their actuator can fail due to carbon build-up from the EGR system. Symptoms include significant power loss, rough engine performance, jerking during acceleration, and sometimes a loud hissing noise from the intake. The issue is more prevalent on cars with high EGR-related carbon accumulation. Replacing the intake manifold flap control unit typically resolves the problem, with costs ranging from €300-800 depending on whether the entire manifold assembly or just the actuator is replaced. Some specialists offer swirl flap removal as a preventive measure, which does not noticeably affect driveability.
