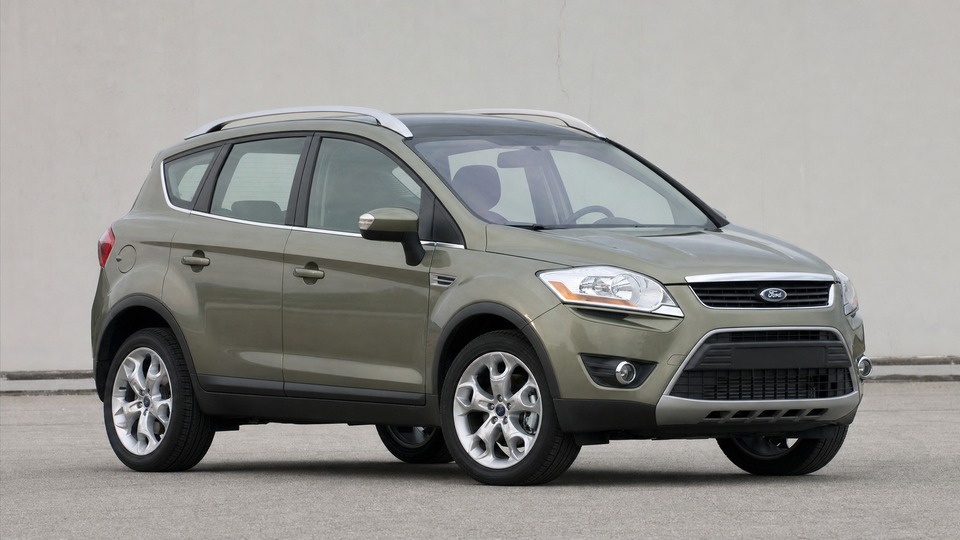

Ford Kuga Mk1 2.0 TDCi

Diesel Kugas are highly prone to DPF clogging, especially when used for short, stop-start journeys. The filter needs regular regeneration via 20+ minute motorway drives above 2,500 RPM. Warning signs include acrid exhaust smell, slight fuel consumption increase at idle (0.1 to 0.3), and ticking noise from dashboard. Failed regeneration causes the engine management light to illuminate and can trigger limp mode. Professional DPF cleaning costs €300-600, while replacement ranges €800-2,000. Some cars have had the DPF illegally removed (should fail MOT). The DPF can also fail due to faulty differential pressure sensors rather than actual blockage - sensor replacement is much cheaper at €100-200. Avoid DPF problems by doing a mix of long and short journeys, never purely city driving.

The 6DCT450 Powershift dual-clutch automatic (only available with AWD 2.0 TDCi models) suffers from premature clutch wear, mechatronic failures, and oil leaks. Common symptoms include jerky engagement in 1st and Reverse, "Transmission Malfunction - Service Now" warnings, and juddering when pulling away. The plastic spacers in the clutch basket tend to break. Independent specialist repairs cost €2,200-2,500, while Ford dealer quotes range €3,500-4,500 for clutch/mechatronic replacement. Some owners report the entire gearbox needing replacement. Manual transmission Kugas are significantly more reliable - strongly avoid Powershift models unless you have detailed service history showing recent preventive transmission flush (should be done every 60,000 km but rarely is). First defects typically appear before 100,000 km. Early diagnosis is crucial as continued driving with symptoms causes further damage to valve body and mechatronic circuits.

The Haldex 4th generation AWD system engages the rear axle when needed. The pre-charge pump commonly fails due to oil sludge blocking the filter, causing front wheels to spin with no rear drive. Dashboard displays "AWD Malfunction" warning. Ford does not schedule Haldex oil/filter changes (calls it "lifetime" fluid) but this is inadequate - owners should service it every 30,000 km or 3 years to prevent pump failure. DIY service costs €50-100 for oil and filter, dealer service €150-200. Once the pump has failed, replacement with oil/filter costs €400-600 at specialists or up to €1,200 at Ford dealers. Check for AWD malfunction codes P1889 (most common). The Haldex system is shared with Volvo, so Volvo-branded fluid (same spec, cheaper) can be used. If buying a Kuga AWD, verify Haldex service history or budget for immediate service.

The 2.0 TDCi suffers from oil feed line blockages causing turbo oil starvation. Expected turbo lifespan is 130,000-180,000 km under normal conditions, but oil starvation accelerates wear significantly. Symptoms include loss of power, P2263 fault code, Service Engine Now warning, and unusual noises. The turbo is difficult to access - replacement requires several hours of labor, potentially including driveshaft removal. Parts cost €800-1,500 for remanufactured/exchange units, €1,200-2,000 for new OEM. Total repair cost ranges €1,000-2,500 depending on whether you use a specialist or Ford dealer. Regular oil changes with high-quality oil are essential. Some owners report continued issues even after turbo replacement, suggesting underlying oil system problems. Check turbo condition during pre-purchase inspection - listen for whistling/whining and check for excessive oil around the turbo housing.

The 2.0 TDCi can overheat due to coolant leaks, cracked cylinder heads, or cooling system failures. In severe cases, heat cracks the plastic/aluminum oil sump, resulting in complete oil loss. Some owners report smoke pouring from the engine, melted undertray, and immediate oil loss. Ford issued a recall for "sump breach" related to PCM software that couldn't properly detect overheating. The fix involves downloading revised ECU calibration to improve overheat detection and add warning/de-rate strategy. Sump replacement costs €500-800, but if engine damage occurred from oil loss, repairs can reach €2,000-3,000 or more. Related issues include water pump/thermostat failure (€600-1,400 repair) - the electric water pump commonly fails between 70,000-100,000 km. Symptoms include coolant warning light, overheating, or poor cabin heating. Verify the sump breach recall (and PCM calibration update) was completed before purchase.

Manual transmission Kugas can suffer from dual-mass flywheel (DMF) wear causing juddering during clutch engagement, rattling at idle, and vibration. The DMF/diesel/clutch combination is a known concern for used buyers. Symptoms worsen over time. Parts cost €250-850 depending on genuine Ford (€395 + VAT) or aftermarket. Labor is substantial as gearbox removal is required. Total cost ranges €1,000-1,700 including clutch replacement (typically done together). Ford dealerships quote higher end of range. Solid flywheel conversions are not recommended - owners report poor results and request switching back to DMF. To extend DMF life, avoid labouring the engine in too high a gear at low RPM then accelerating hard. Check for juddering/rattling during test drive. DMF can fail prematurely at 60,000-80,000 km on neglected vehicles, or last 150,000+ km with proper driving technique.

The Exhaust Gas Recirculation (EGR) valve becomes clogged with soot over time, causing rough idling, erratic engine behavior including stalling, increased fuel consumption, and higher emissions. The check engine warning light typically illuminates. EGR cleaning costs €100-200 if caught early; replacement parts range €33-1,028 depending on OEM vs aftermarket. Labor adds approximately €150-200 (about 1-2 hours). Total replacement cost €250-800. Symptoms include poor throttle response and running lean or rich. Preventive carbon cleaning every 50,000 km extends valve life. The EGR can be accessed by removing the top cover, air filter housing, intake pipe, EGR pipe from inlet manifold, support pipe, and two bolts securing valve to EGR cooler. New valves require programming to the vehicle. Some recommend EGR cleaning services at specialists rather than replacement when possible.

The Kuga is well-known for battery drain issues. Common causes include alarm modules with failing backup batteries, in-cabin preheater (PTC), and the Sony radio. Symptoms include flat battery (sometimes overnight), clicking from doors, failure of remote locking, and random alarm triggering. Many owners experience complete alternator failures leading to loss of electrical power while driving, necessitating alternator and sometimes battery replacement. Ford dealer alternator replacement costs €300-490; independent garages €170-400; DIY using eBay/Euro Car Parts alternators €100-170. Warning: if battery light comes on, be very careful - you can lose steering, lights when battery dies, and failed alternators can get extremely hot causing fire risk. Replacement is complex requiring diesel fuel filter assembly removal and system bleeding. Check for electrical faults during inspection and verify battery holds charge overnight.

The brake pedal can stiffen due to a faulty non-return valve in the vacuum system that powers the brake servo. Diesel Kugas use a vacuum pump (petrol engines create vacuum naturally). The issue is temperature-related - when cold, the rubber in the valve hardens and doesn't seal properly, allowing vacuum to leak away overnight. This results in a stiff brake pedal on first use each day, potentially causing longer stopping distances. Once the engine warms up, normal braking returns. Ford issued TSB/recall notice R/2009/050 for build dates from 01/11/2008, though not all vehicles were recalled. The revised non-return valve costs only €5-10 and takes minutes to replace. Some cases require replacing the brake booster check valve. If the filter between pump and servo is blocked, that can also cause the issue (€20-50 part). Dealers found the correct TSB and resolved it quickly with the cheap revised valve. Check brake feel when cold during test drive.

The Sony radio and navigation system regularly fails on Mk1 Kugas. GPS shows "NO GPS" thinking the vehicle is "off the planet," asking to drive to a better location. The radio loses preset stations then entire functionality dies - displaying frequency but with no sound or controls. The ACM (CD player/audio control module) commonly fails, especially on 2013-2015 models. Some units emit loud bangs then fail due to short circuits or blown internal speaker components. The GPS antenna may have loose connections or the GPSM module behind instrument cluster may fail. Troubleshooting: disconnect GPS antenna connector NA006 and check circuit resistance (should be ≥190 ohms). Try disconnecting battery positive lead for 20+ minutes to clear communication errors. Replacement Sony units are scarce - used units on eBay cost up to €200-500 as scrappers know they're failing and rare. Ford charges high prices for stereos and screens. Sometimes the anti-trap protection of window lifters malfunctions, causing windows to roll down suddenly. The Ford Sony systems are widely considered unreliable.
