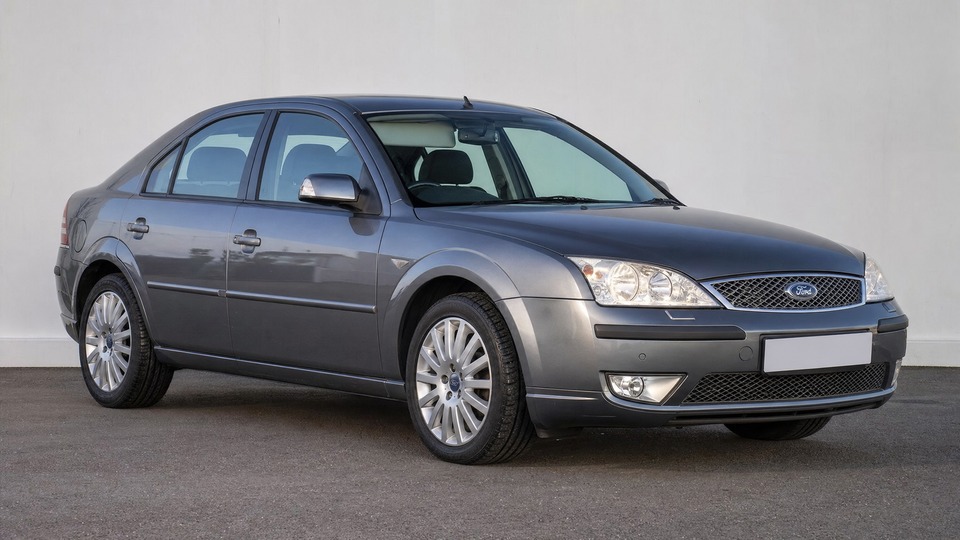

Ford Mondeo Mk3 2.0 TDCi

The Delphi common-rail high-pressure fuel pump can develop internal wear that releases fine metallic swarf into the fuel system. This swarf circulates through the fuel rail and injectors, jamming injector valves open and causing overfuelling, rough running, or engine damage from hydraulic lock. The particles are extremely fine (like metallic dust) and are not always caught by the fuel filter. Early detection involves inspecting the fuel filter element with a magnet for metallic particles. If contamination is found, the entire fuel system needs flushing: new fuel pump (€400-600 remanufactured), new fuel filter, and often two or more injectors (€150-250 each reconditioned). Total repair at a specialist diesel workshop runs €800-1,500. If contamination reaches all four injectors and damages the fuel rail, costs can reach €2,500-3,000. Using quality diesel fuel and changing the fuel filter on schedule helps reduce risk. This issue is more common on cars that have had infrequent fuel filter changes.

The Delphi common-rail injectors on the DW10 have a typical service life of 150,000-200,000 km, though fuel quality and filter maintenance strongly influence longevity. Symptoms of failing injectors include difficult cold starting, rough idle, misfires, excessive smoke, and a rising oil level (diesel leaking past seals into the crankcase). A single reconditioned injector costs approximately €150-250 fitted at a diesel specialist, while a new OEM injector runs €350-450. On high-mileage cars, it is often recommended to replace all four injectors simultaneously, as the remaining injectors are likely to fail soon after. A full set of four reconditioned injectors with fitting and ECU coding costs €800-1,200. New OEM injectors for all four can reach €1,800. After fitting, each injector must be calibrated in the ECU using the correction code stamped on the injector body. Regular fuel filter changes and using quality diesel are the best prevention.

The 2.0 TDCi produces up to 330 Nm of torque, which gradually fatigues the dual mass flywheel. Symptoms include a metallic rattling at idle that disappears when the clutch pedal is pressed, vibration through the pedals, and eventually clutch slip. Typical failure occurs between 120,000-180,000 km, with urban stop-start driving and riding the clutch accelerating wear. The DMF should always be replaced together with the clutch disc, pressure plate, and concentric slave cylinder, as gearbox removal is required for access. An independent garage typically charges €700-1,000 for the complete job with aftermarket parts. Ford dealer pricing runs €1,200-1,400. Some owners opt for a solid flywheel conversion at approximately €400-600, which eliminates future DMF failures but increases drivetrain vibration and noise. This is not specific to the Mondeo and affects virtually all modern turbodiesels.

The 130 hp version uses a variable-geometry turbocharger with an electronic actuator that controls the vane position. Carbon deposits from the EGR system gradually restrict actuator movement, particularly on gently driven cars that rarely reach higher RPMs. Symptoms include intermittent limp mode, the glow plug warning light flashing, and reduced power. Fault codes are typically P132A and P132B. Specialist turbo actuator repair services can refurbish the actuator for €150-300 with a lifetime warranty, which is the most cost-effective repair route. Ford does not sell the actuator separately, quoting a complete turbo assembly at €1,200-1,800. A reconditioned turbo from a specialist costs €600-900 fitted. Regular spirited driving and motorway use help prevent carbon buildup on the vanes. The 90 hp and 115 hp versions use a fixed-geometry turbo and are not affected by this issue.

The EGR valve on the DW10 engine gradually accumulates carbon deposits, particularly on cars driven gently or primarily in urban conditions. A characteristic symptom is a stuttering or hesitation specifically around 1,800-2,000 rpm when feathering the throttle. Other symptoms include rough idle, black exhaust smoke, and the engine management light. The EGR valve can be cleaned for €100-200, but this often provides only temporary relief lasting 20,000-30,000 km before carbon builds up again. A new EGR valve costs €150-350 for parts, with total replacement running €200-600 at an independent garage. Some owners have the EGR blanked off, which eliminates the stutter but triggers the engine management light. Using quality diesel fuel and regular higher-RPM driving help reduce carbon buildup.

The rear subframe bushes on the Mondeo Mk3 are a well-known weak point. The rubber deteriorates and separates from the metal housing, typically becoming noticeable after 80,000-100,000 km. Symptoms include a dull clunking or thudding noise over uneven road surfaces, a loose feeling from the rear end, and uneven rear tire wear. The issue is easy to diagnose visually by inspecting the bushes from underneath the car. Replacement with OEM rubber bushes costs approximately €150-300 at an independent garage including alignment. Polyurethane bushes (Powerflex or similar) cost €50-70 for a set and last significantly longer than OEM rubber, though they transmit slightly more road noise. Ford dealers charge €250-400. This is one of the most predictable maintenance items on any Mk3 Mondeo and may need doing twice during typical long-term ownership.

Ford issued a Technical Service Bulletin acknowledging that Mondeo Mk3 models built between October 2000 and November 2004 have a defective clinch flange sealant on the doors, bonnet, and boot lid. The sealant deteriorates over time, allowing moisture to penetrate between the inner and outer door skins. Rust develops from the inside out, first appearing as bubbling paint along the bottom edge of the doors. By 2026, virtually all affected cars will show this to some degree. Repair involves stripping the sealant, treating the rust, resealing, and repainting. A professional repair costs €200-400 per door, or €600-800 if multiple panels are affected. Cars built from late 2004 onwards received a modified clinch flange that is less susceptible. Always inspect the bottom edges of all doors carefully before purchase.

The Mk3 Mondeo uses a hydraulic power steering system. The power steering reservoir contains a filter that can become clogged with debris over time, starving the pump of fluid and causing it to whine and eventually fail. Symptoms include heavy steering at low speeds, a whining noise that increases with engine speed, and fluid leaks. Replacing just the reservoir (which includes the filter) is a simple fix at €50-100 and often resolves the issue temporarily. If the pump itself has been damaged by running dry, a replacement pump costs €150-300 plus fitting. In more severe cases where the steering rack is also contaminated, a complete rack and pump replacement runs €500-800 at an independent specialist. Regular power steering fluid changes and checking the fluid level help prevent this issue.
