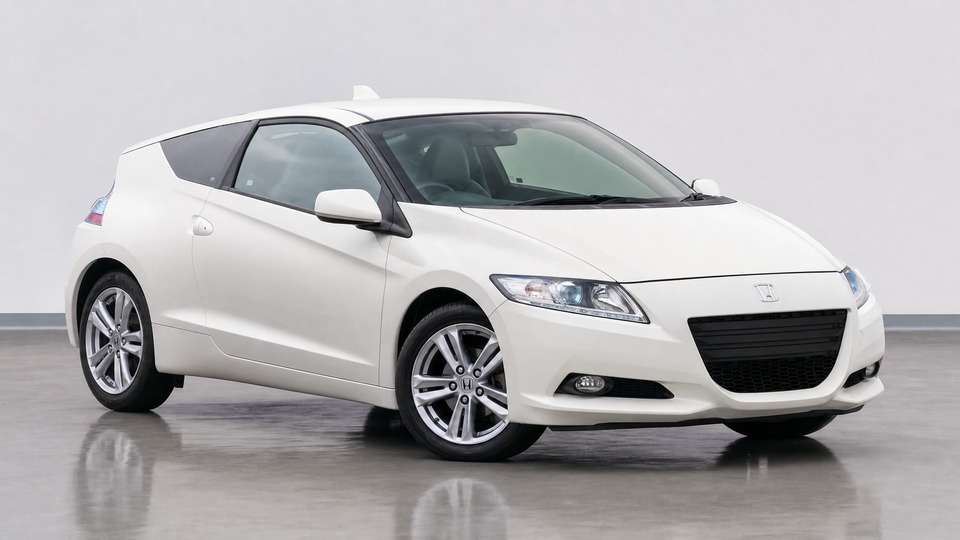

Honda CR-Z 1.5 Hybrid ZF

The CR-Z uses a compact NiMH battery pack for its IMA system. Over 10-15 years, individual cells degrade unevenly due to heat cycling and age. Signs of degradation include frequent battery recalibrations (gauge dropping to minimum then quickly charging back up), reduced electric assist, and eventually an IMA warning light with a P1449 code once usable capacity drops below approximately 10% of original. Actual full battery failure is rare on the CR-Z compared to earlier Honda hybrids like the Civic Hybrid, as the CR-Z's battery pack has better cooling airflow. In Europe, reconditioned battery packs with installation cost approximately €700-1,000 from hybrid specialists. A new OEM pack from Honda runs €1,800-2,500 where still available. Many CR-Z owners report their original batteries still functioning adequately at 150,000+ km, albeit with reduced electric assist.

The IPU (Intelligent Power Unit) cooling fan draws cabin air through the battery pack to keep it within operating temperature. When this fan fails, the battery overheats, which accelerates cell degradation and can trigger IMA warning codes. The fan motor itself costs approximately €100-150 as a part and is located in the boot area, making it relatively accessible for replacement. At a Honda dealer, total repair runs €300-500 including diagnostics. At an independent shop or as a DIY job, costs are much lower. This is actually more common than full battery failure and should be checked if the IMA system shows warnings. A simple test is to listen for the fan running when the hybrid system is active.

This is the CR-Z's most well-known weak point. The exterior door handles use a plastic internal mechanism that becomes brittle over time, especially in hot climates or with heavy use. The handle feels increasingly stiff before eventually failing completely, leaving the door unable to be opened from outside. This affects all CR-Z model years from 2010 to 2016. OEM replacement handles cost approximately €80-120 per side, and installation is straightforward. Some owners have sourced aluminium aftermarket replacement internals that eliminate the problem permanently. At a garage, expect €150-300 per handle including labour. Given the age of all CR-Z models, most will experience this at some point.

The CR-Z uses a compact 12V battery that is prone to draining if the car sits for more than a week or two. Contributing factors include the anti-theft hood switch drawing current when faulty, the Bluetooth Hands Free module not shutting down properly, and general age-related parasitic draws. When the 12V battery is weak, the car will not start and dashboard warning lights may flash erratically, which owners sometimes mistake for IMA or hybrid system faults. Replacing the 12V battery costs €100-200, and identifying and fixing the parasitic draw source costs €50-150 in diagnostics. Using a trickle charger when the car is parked for extended periods prevents the issue entirely.

The CR-Z's fog light lenses are prone to developing condensation internally. When moisture-laden lenses are then exposed to cold temperatures or thermal shock from the bulb heat, they crack. Honda does not cover this as a warranty issue since it is attributed to temperature change. Replacement requires the entire fog light assembly as lenses are not sold separately. OEM assemblies cost approximately €80-120 each. Some owners have fitted Lexan (polycarbonate) aftermarket lenses which do not crack. Alternatively, fog light assemblies from certain Honda Civic models are compatible and sometimes cheaper to source.

Some CR-Z owners report AC compressor clutch failure, where the electromagnetic coil that engages the compressor fails. Symptoms include warm air from the vents and no compressor engagement. The compressor clutch coil itself can sometimes be replaced independently for €200-400, but if the compressor internals are also damaged, full replacement costs €600-1,200 including refrigerant recharge. Before authorising a full compressor replacement, have an AC specialist check the simpler causes first: blown fuse, faulty relay, or low refrigerant from a minor leak, which are much cheaper to resolve.
