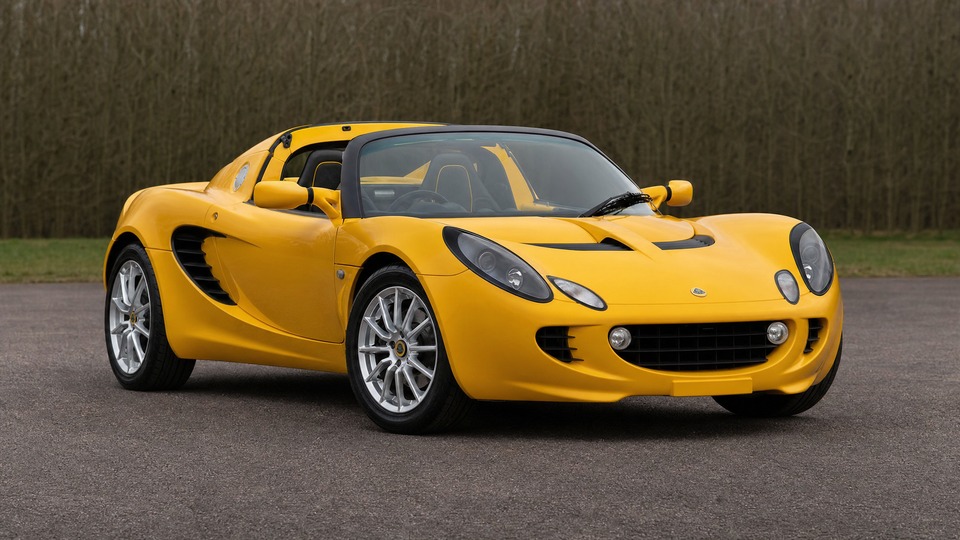

Lotus Elise S2

The Elise chassis uses mild steel bobbins bonded into the aluminium tub at suspension pickup points. When the protective paint is damaged by stone chips or road debris, salty water acts as an electrolyte and triggers galvanic corrosion, literally dissolving the surrounding aluminium. The front upper wishbone pickups are most vulnerable. Early-stage corrosion can be treated with corrosion inhibitor and protective coatings for around €500-800. However, severe cases where the aluminium has turned to white powder around the mounting points are typically beyond economical repair, as the chassis tube itself needs replacing. This effectively writes off the car. Cars driven regularly in winter on salted roads are most at risk. Lotus never issued a formal recall but specialists consider this the single most important inspection point on any Elise. Prevention costs €300-500 for professional cavity wax and underbody treatment, which should be repeated every 2-3 years.

Head gasket failure is the best-known weakness of the Rover K-Series engine fitted to 2001-2004 Elise S2 models. The original single-layer gasket design allows coolant to enter the combustion chamber or oil passages. Symptoms include white mayonnaise under the oil filler cap, rising coolant temperature, coolant loss without visible leaks, and white smoke from the exhaust. The K-Series has a very low coolant capacity, so even a small leak leads to rapid overheating. An upgraded multi-layer steel (MLS) head gasket replacement costs approximately €500-800 at a specialist, with head skimming adding another €150-200 if warped. If overheating has cracked the head or warped the block, a replacement engine may be needed at €2,000-3,000. Many specialists now consider the MLS gasket a permanent fix when combined with a properly skimmed head. Post-2004 Toyota-engined cars are not affected by this issue.

The Elise bodywork consists of two large fibreglass clamshells (front and rear) that bolt onto the chassis. The front clamshell is particularly vulnerable because it is a single piece incorporating the nose, bonnet, and front wings. Even a minor parking bump can crack or deform it, and spider-web stress cracks worsen over time if not properly repaired. A used replacement clamshell costs approximately €1,200-1,500 plus fitting and paintwork. Professional fibreglass repair of cracks and minor damage costs €500-1,500 depending on severity. Always inspect under the nose and around the wheel arches for poor previous repairs, filler, or paint mismatches. Only specialists experienced with Lotus composite work should be trusted with structural repairs.

The Toyota 2ZZ-GE engine uses a VVTL-i system that switches to high-lift cam lobes above approximately 6,200 rpm. These high-lift lobes are subject to premature wear, particularly on 2005 and later engines. The cause is debated but appears related to material quality and insufficient oil pressure at the cam/follower interface when engaging lift at high rpm on a cold engine. Specialists recommend waiting at least 10 minutes after coolant reaches operating temperature before engaging the high-lift zone. Symptoms include a ticking noise from the valve train and reduced power above the VVTL changeover point. Repair requires removal of the valve cover, replacement of worn cam lobes and followers, costing approximately €1,000-1,800 at a specialist including parts and 6 hours of labor. The lift bolts should also be replaced preventively with the latest revision (part number 90105-06293).

The Elise soft top is a simple clip-on design that was progressively improved during S2 production. Pre-2004 cars commonly leak where the side windows, windscreen, and roof meet; Lotus introduced improved seals in the 2004 model year that largely solved this. The fabric degrades with UV exposure and age, becoming brittle and prone to tearing. A replacement soft top costs approximately €600-1,000 including fitting. Water ingress from a leaking roof can reach the ECU and multifunction relay unit (MFRU), both located in areas vulnerable to moisture. A water-damaged MFRU can cause multiple electrical failures, as it controls the fuel pump, ignition, and other critical systems. Check under the boot carpeting for signs of moisture, mould, or battery acid damage.

The inner rear toe link on the Elise uses a ball joint design where the bolt-like shaft has a tendency to loosen over time. Many cars left the factory with these bolts under-torqued. If a toe link comes loose while driving, it causes sudden and dangerous changes in rear toe angle, potentially leading to loss of control. One well-documented failure occurred at approximately 160 km/h on the Nurburgring. The fix is straightforward: torque the toe link bolts to 60 Nm (44 lb-ft) and check them periodically. Aftermarket braces from companies like Sector111 reinforce the mounting for around €400-600 and are recommended for any car that sees spirited driving. The bolts themselves are inexpensive, making this primarily a labor and awareness issue.

The Elise S2 headlight lenses cloud and yellow over time from UV exposure, which is common on cars of this age. Pre-2006 cars additionally had lamp inner reflectors that could degrade in direct sunlight. A 3M restoration kit can temporarily restore clarity for under €30, but the results are not permanent. Replacement headlight units cost approximately €400-500 per side from Lotus, making a pair approximately €800-1,000. Aftermarket LED conversion kits offer a more affordable alternative at approximately €200-400 for a pair and improve light output significantly.

The Toyota 1ZZ-FE engine fitted to the base Elise S from 2004 has a known oil consumption issue on pre-July 2005 production engines. Toyota used undersized pistons with oversized rings that wear prematurely, allowing oil past the rings into the combustion chamber. Consumption of 1 litre per 1,000 km is not unusual on affected engines. Toyota acknowledged the problem and revised the piston rings from mid-2005. If consumption is excessive, a piston ring replacement costs approximately €1,500-2,500 including labor. Post-2006 engines are significantly less prone to this issue. Check oil level carefully on test drive and ask the owner about consumption between oil changes.
