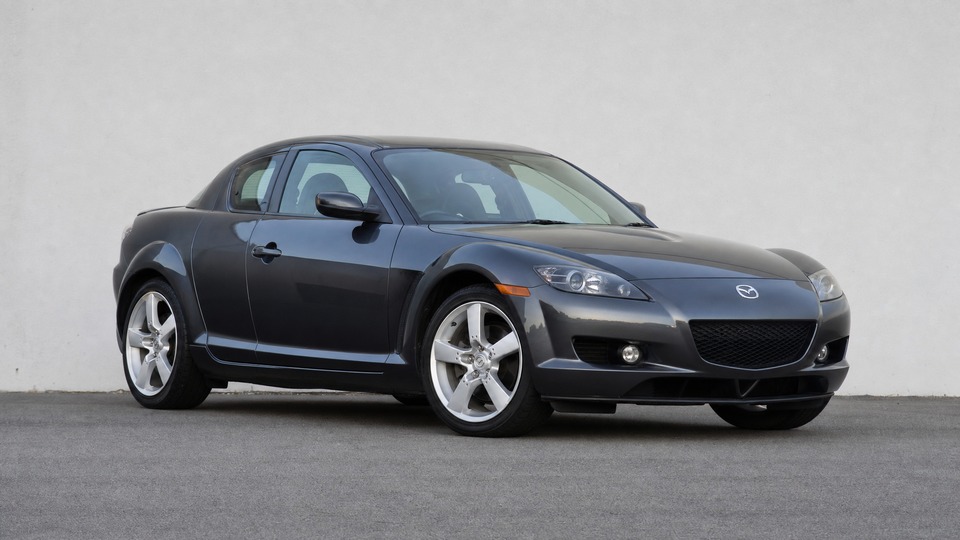

Mazda RX-8 (Renesis) SE3P

The Renesis rotary engine relies on apex seals to maintain compression between rotor faces and the housing. These seals gradually wear, especially with short trips, infrequent oil changes, or conservative driving (ironic as it sounds, rotaries need to be revved). Symptoms start with poor hot-restart ability and progress to loss of power and rough running. A compression test is essential before purchase: readings below 7.0 kgf/cm2 on any face indicate the engine is failing. Healthy readings are 7.5-8.5. Rebuild costs at a European rotary specialist run €3,000-4,500 for a standard rebuild with new seals, bearings, and gaskets. If rotor housings need replacement (common), costs rise to €5,000-5,500. Reports suggest roughly 40-50% of RX-8 engines need at least one rebuild over their lifetime. Series 2 (2009+) engines with improved oil metering are more durable, but not immune.

The RX-8's rotary engine runs hotter and burns oil by design, both of which shorten catalytic converter life. Misfires from worn ignition coils dump unburnt fuel into the converter, accelerating its death. Symptoms include loss of power at higher RPM, rattling from underneath, rotten egg smell, and the converter glowing red-hot. An aftermarket EU-compliant replacement costs around €500-700 in Europe. OEM Mazda converters can exceed €1,500. Always diagnose and fix the root cause (usually ignition coils) before fitting a new converter, or it will fail again quickly.

Mazda used inexpensive ignition coils on the RX-8 to keep costs down, but they fail far more often than in conventional cars. Some coils last only 30,000 km, while later-revision coils may reach 60,000+ km. The rotary engine has four spark plugs (two leading, two trailing), and each pair fires under different conditions. When coils weaken, misfires occur which dump raw fuel into the exhaust, destroying catalytic converters and washing oil off apex seals. Replacement coils cost €60-100 each, and the RX-8 uses four. A full ignition system refresh with quality coils and plugs runs €250-500. This is part preventive maintenance, part unexpected failure, as coils can die without warning.

If the engine is turned off before fully warming up (typically under 5 minutes of running), excess fuel can wash the oil film off the apex seals and pool in the combustion chambers. The engine then refuses to start. The deflood procedure involves removing the fuel pump fuse, removing spark plugs, cranking the engine to expel fuel, cleaning and reinstalling plugs, and attempting restart. In mild cases, flooring the throttle while cranking (which cuts fuel injection) can clear it. If plugs are fouled beyond cleaning, replacement costs €60-100. Towing to a specialist for deflooding costs €100-400. Prevention: always allow the engine to reach operating temperature before shutting off, or briefly rev to 3,000-4,000 RPM before turning off. Never shut off a cold engine after just moving the car a few meters.

Rotary engines require higher cranking speed to start, which puts more stress on the starter motor. 2004 and early 2005 models came with an undersized starter that Mazda later upgraded. Even the improved starter wears faster than on a conventional car. Symptoms include slow cranking and extended start times. An upgraded high-speed starter costs around €200-350. Labor for replacement is straightforward at €100-150. If you have a 2004-2005 model, upgrading to the later-spec starter is strongly recommended. A strong battery (minimum 75Ah) is also essential for reliable starting.

The RX-8 uses electric power steering, and the control module is prone to failure. A common cause is the coolant overflow tube, which dumps fluid directly onto the EPS electrical connectors, causing corrosion. Symptoms include intermittent power steering loss, warning lights, and in severe cases complete EPS failure. Cleaning the connectors with electrical contact cleaner often provides a temporary fix. A new EPS control module costs €300-800 depending on source, with labor adding €100-400. Relocating the coolant overflow tube or adding a splash guard prevents recurrence.

The Renesis engine is extremely sensitive to overheating. As little as 10 seconds of running without adequate coolant can cause fatal damage to the apex seals and rotor housings. The radiator, thermostat, water pump, expansion bottle, and coolant hoses are all age-related failure points on a car now 13-22 years old. Preventive coolant replacement every 4-5 years is essential. A new radiator costs €200-400 (aftermarket), thermostat €50-100, water pump €150-250. The key is catching leaks before they cause overheating. Regular coolant level checks are critical.
