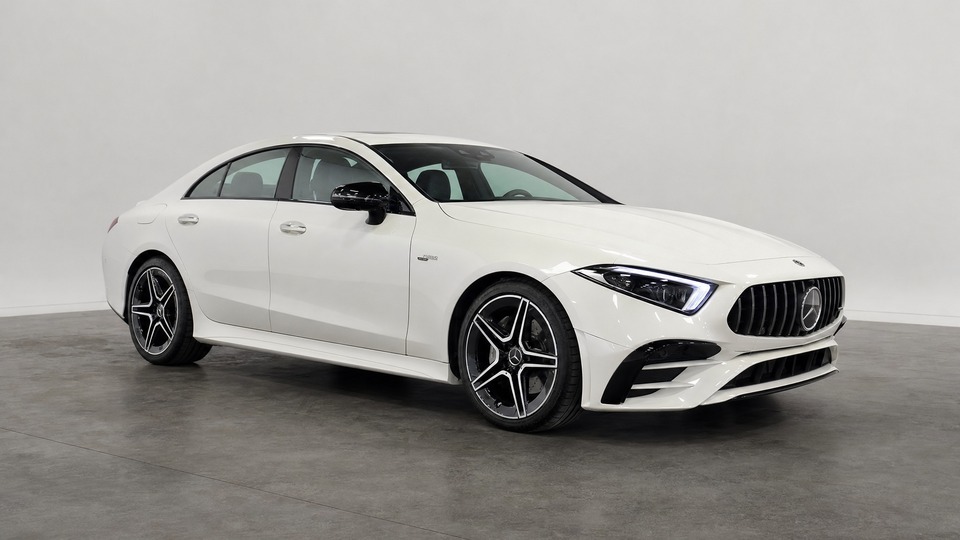

Mercedes-AMG CLS 53 C257

The CLS 53's 48V mild hybrid system (EQ Boost) relies on a lithium-ion battery that powers the integrated starter-generator (ISG) and electric auxiliary compressor. Multiple owners have reported the 48V battery draining prematurely, causing the car to shut off while driving, enter limp mode, or lose acceleration at highway speeds. Mercedes has issued three Technical Service Bulletins related to 48V battery issues on 2019-2021 models, and a class action lawsuit has been filed in the US over repeated failures. A recall affecting 2021 models addresses a loose 48V ground cable in the engine compartment that can overheat and cause fire risk. Battery replacement costs approximately 1,500-2,200 euros including labour, as the unit is sealed and liquid-cooled. The ISG itself can also fail, with replacement exceeding 2,500 euros. Proper grounding connections are critical, and the 48V ground cable recall should be verified as completed on all affected cars.

The CLS 53 uses Mercedes AIRMATIC air suspension with adaptive damping (ADS+). The rubber air springs become brittle over time, developing micro-cracks that allow air to escape. Symptoms include the car sitting lower on one corner after being parked overnight, the suspension compressor running excessively, or a dashboard warning message. Failure typically occurs between 80,000 and 130,000 km. An OEM air strut costs approximately 700-900 euros per unit for the CLS/E-Class platform, with aftermarket alternatives available from around 400-600 euros. Labour runs 2-3 hours per corner. If the compressor has been overworked due to a leaking spring, it may also need replacement at 400-800 euros. Total repair for one strut plus compressor can reach 2,000-3,000 euros at a dealer. Aftermarket brands like Arnott offer rebuilt struts with improved rubber compounds at lower cost. A full set of four struts at a dealer can exceed 4,000 euros.

The M256 inline-six has a timing chain positioned at the rear (flywheel side) of the engine, driving the camshafts, fuel pump, and oil pump. The chain tensioner can lose oil pressure overnight, resulting in a metallic rattle during the first few seconds after a cold start. This issue has been documented across M256 applications, though it appears less frequent than on older Mercedes engines like the M271 or M274. The chain is designed for the engine's lifetime, but if the tensioner weakens significantly, the chain, guides, tensioner, and sprockets all need replacement. Due to the rear-mounted position, this is a labour-intensive job requiring 10+ hours, bringing total cost to 1,500-3,000 euros depending on the shop. Regular oil changes every 15,000 km or annually with correct specification (MB 229.51/229.61) help maintain tensioner pressure.

The M256 uses an integrated starter-generator (ISG) between the engine and transmission, replacing the conventional alternator and starter motor. The ISG provides the 48V EQ Boost function, adding 22 hp and 250 Nm of torque during acceleration. When the ISG fails, symptoms include a whining noise during acceleration, start-stop system malfunction, and reduced engine performance. Mercedes recommends diagnosis via the XENTRY system only. Replacement of the ISG requires partial transmission removal, making it a labour-intensive repair. Parts cost approximately 1,200-1,800 euros, with labour adding 800-1,500 euros. This failure is not common on well-maintained cars but becomes more likely after 100,000 km. The ISG also handles the conventional functions of a starter and alternator, so failure leaves the car unable to start without a jump.

The M256 features a 48V-powered BorgWarner electric auxiliary compressor that spins up to 70,000 rpm to eliminate turbo lag at low engine speeds. When the eBooster fails, the engine loses its characteristic instant throttle response and may display a check engine light with fault codes related to the auxiliary compressor. The component is powered by the 48V system, so faults can sometimes be traced to 48V battery or wiring issues rather than the compressor itself. If the eBooster itself needs replacement, the part costs approximately 1,000-1,500 euros, with labour adding 500-1,000 euros due to its position in the engine bay. An ECU software update can sometimes resolve intermittent faults. This failure is relatively uncommon but represents a unique failure point not found on conventional turbocharged engines.

The M256 uses direct fuel injection, which means fuel does not wash over the intake valves. Oil vapour from the crankcase ventilation carbonises on the valve backs over time, restricting airflow and causing rough idle, minor power loss, and increased fuel consumption. Symptoms typically become noticeable between 60,000 and 80,000 km. Walnut blasting is the standard cleaning method, costing approximately 500-800 euros for a six-cylinder engine (more labour than a four-cylinder). This is recommended as preventive maintenance every 60,000-80,000 km. Using premium fuel and regular motorway driving helps slow the buildup, but it cannot be entirely prevented on a direct-injection engine.

Mercedes recalled certain 2019-2021 CLS 53 4MATIC vehicles because the transmission wiring harness may be misrouted, pulling the protective insulation away from the electrical connector. This exposes the connector to water ingress and corrosion, which can result in an electrical short-circuit and fire risk. Mercedes confirmed 49 warranty claims including two thermal events. The recall remedy involves inspecting and repairing the connector, rerouting the harness, and installing an additional bracket, all free of charge. If the recall has not been completed, the repair should cost nothing at a Mercedes dealer. However, if secondary damage has occurred from corrosion, additional repairs may be needed. This is a critical safety item. Verify completion with Mercedes using the VIN before purchase.

Some M256 owners report oil consumption exceeding the manufacturer's specification of 0.5 litres per 1,000 km. This appears more prevalent on pre-2021 production engines. Causes include worn piston rings, PCV system malfunction, or turbocharger seal degradation. Mercedes has not issued a formal recall but has internal technical guidance for dealers. If consumption is within specification, regular top-ups between services are sufficient. If excessive, a compression test and borescope inspection are recommended. PCV system repair costs approximately 500-1,000 euros. Piston ring replacement requires engine disassembly at 2,500-3,000 euros. Monitoring oil level between services is essential, and keeping oil change intervals at 15,000 km or shorter helps maintain internal seal integrity.
