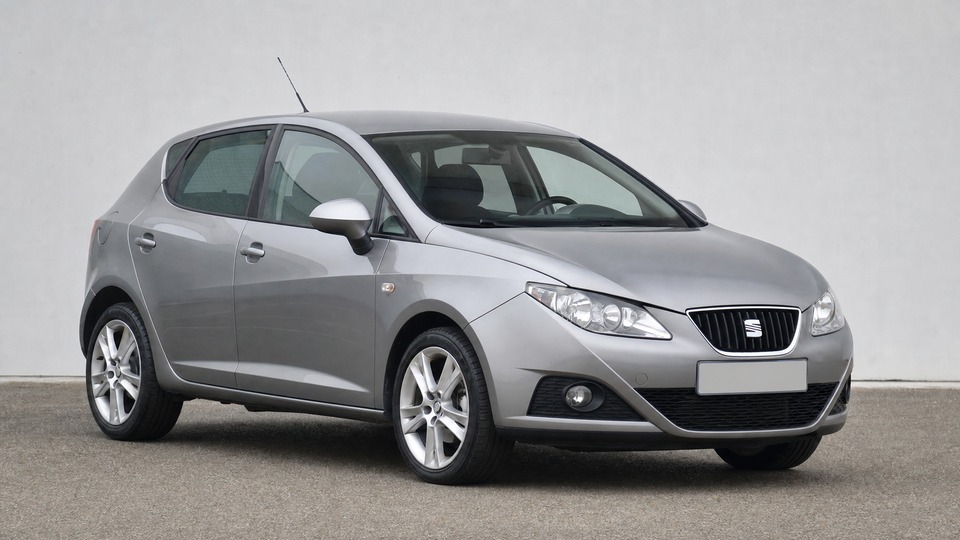

Seat Ibiza Mk4 1.6 TDI

The 1.6 TDI uses VDO/Siemens piezo injectors that are known to fail across the VAG range. Root cause analysis shows the piezoelectric stack suffers electrode melting and insulation breakdown, creating internal short circuits. Failure is more common on 2009 to early 2013 production vehicles. The emissions recall software update (Dieselgate fix) may have accelerated failures by modifying injection cycles and increasing DPF regeneration frequency. A single injector costs approximately €350-500 for the part, but all four are typically replaced together since if one fails, the others are likely to follow. Including labor and ECU coding, expect €1,500-3,000 at a specialist. VW dealerships may quote higher. Symptoms include misfiring, rough running, increased fuel consumption, and engine management light.

The EGR system on the 1.6 TDI is positioned at the rear of the engine, making access difficult and labor-intensive. Carbon deposits build up over time, particularly with short-trip driving. Symptoms include rough idle, loss of power, increased emissions, and the engine management light. The EGR valve part costs around €200-350, but labor runs €300-700 due to accessibility. Some owners report EGR failures shortly after the Dieselgate emissions software update, though Volkswagen Group has not officially acknowledged a connection. Total repair cost including cooler replacement ranges from €600-1,200 at independent specialists.

The DPF requires sustained motorway driving (at least 20-30 minutes at higher RPM) to regenerate properly. Cars used primarily for short urban trips will clog the DPF prematurely. Warning signs include the DPF light illuminating, reduced power, and increased fuel consumption. Professional DPF cleaning costs €200-400 and can extend life. A new OEM DPF costs €800-1,200 including fitting. Forced regeneration via dealer diagnostic tool costs €80-150 and may resolve early-stage blockage. Prevention is key: regular longer drives keep the DPF healthy.

The turbocharger on the 1.6 TDI uses an electronic actuator that can stick or fail, particularly if the car is driven gently most of the time, as carbon deposits build up on the VNT vanes. Symptoms include loss of power, limp mode, and whistling or lack of turbo noise. VW does not sell the actuator separately, recommending a complete turbo replacement at €1,500-2,000 including labor. However, specialist turbo rebuilders can replace just the actuator for €400-600. Full turbo failure from oil starvation or bearing wear is less common but occurs after 150,000+ km, costing €1,200-2,000 for a remanufactured unit fitted.

If your Ibiza has the 7-speed DSG automatic (DQ200), this is the less reliable dry-clutch variant used across the VAG range. The mechatronic unit's valve body has a design flaw where the locating canister wall is too thin and can split, causing loss of hydraulic pressure. Symptoms include jerky shifts, hesitation between gears, loss of drive, and warning messages. Clutch pack wear is also accelerated in stop-start traffic. Mechatronic unit repair at a specialist costs €800-1,500, while full replacement through a dealer can reach €2,500-3,000. Manual gearbox Ibizas do not have this issue. DSG oil should be changed every 60,000 km as preventive maintenance.

The dual mass flywheel absorbs engine vibrations but wears out faster on diesel engines due to higher torque loads. Symptoms include a rattling noise at idle (disappears when the clutch pedal is pressed), juddering on takeoff, and difficulty engaging gears smoothly. The DMF is typically replaced together with the clutch kit, which adds to the total cost. Expect €800-1,500 for DMF, clutch kit, and labor at an independent specialist. This is common between 120,000-180,000 km depending on driving style. Some owners convert to a single mass flywheel for €500-700, which is cheaper but increases drivetrain vibration.

A known VAG design issue allows water to enter the door cavity and corrode the window motor contacts. The controller is built into the motor, so the entire unit must be replaced if it fails. Symptoms include slow window operation, grinding noises, or complete failure to move. The driver's window is most commonly affected. Parts cost €60-120, labor is typically 1-2 hours. The issue affects models across all production years but is more common on 2008-2012 cars.
