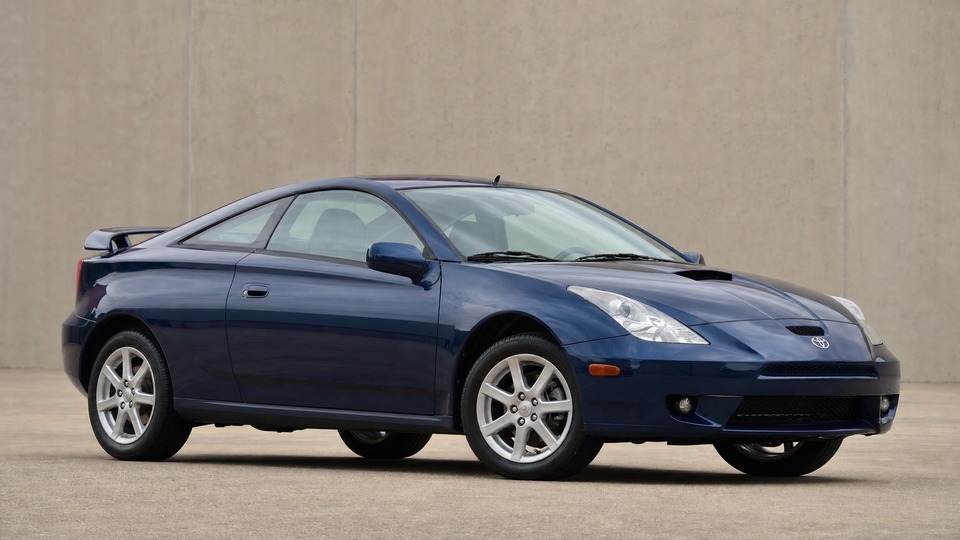

Toyota Celica T23

The 1ZZ-FE engine in pre-facelift Celica models (1999-2002, some early 2003) suffers from excessive oil consumption due to a design flaw in the pistons. The original pistons have only two oil return holes per side, which clog easily, causing the oil control rings to stick and oil to be burned. Consumption can reach 1 litre per 1,000 km in severe cases. Toyota revised the pistons with additional oil return holes from late 2002/2003 production onward. A piston ring replacement requires engine disassembly and costs approximately €1,500-2,000 at an independent shop. A full short-block rebuild runs €2,500-3,000. This issue does not affect the 2ZZ-GE engine. If buying a pre-2003 VVT-i model, check oil level carefully and ask about consumption patterns.

The C60 6-speed manual gearbox has a known weakness in its 3rd and 4th gear synchromesh rings. Toyota revised the synchro design in 2003-2004 production, but both early and late versions can wear out. Symptoms include grinding or resistance when shifting into 4th gear, especially when cold. The repair requires gearbox removal and partial rebuild. A synchro ring kit costs around €400-500, with labor adding €400-800 depending on the shop. Alternatively, used C60 gearboxes are available for €300-600. Cars that were driven hard or with aggressive shifting are most susceptible.

The 2ZZ-GE VVTL-i engine uses small bolts to engage the secondary high-lift cam lobes above 6,200 rpm. On pre-facelift models (1999-2002), these bolts were prone to wearing down or breaking, which prevents the VVTL-i system from engaging. The result is a noticeable loss of power above 6,200 rpm. If the bolts are intact, replacement is straightforward and inexpensive (under €50 for parts, 30-40 minutes labor). However, if a bolt has broken off inside the cylinder head, extraction requires specialist work and can escalate to €1,500-2,500 depending on head damage. Toyota issued a TSB acknowledging this issue and updated the bolt design. Always verify VVTL-i engagement during a test drive.

The 7th-generation Celica is prone to undercarriage corrosion, particularly the rear subframe, inner sills, and the area behind the front wheel arches where plastic trims trap dirt and moisture. Surface rust is treatable, but structural rot in the rear subframe is a serious safety concern and an MOT/TUV failure point. Repair is complicated because replacement body panels are no longer available from Toyota, so all metalwork must be fabricated from flat sheet steel. A subframe replacement or repair typically costs €500-1,500 depending on severity, while extensive sill and structural repairs can reach €2,000-3,000. Cars from the UK, Netherlands, and northern Germany are most affected. Annual undercoat treatment is strongly recommended for prevention.

The rear tail light foam seals deteriorate over time, allowing rainwater to enter the boot and pool in the spare wheel well. The windshield wiper cowl drainage system can also become clogged with leaves and debris, contributing to water ingress. In some cases, water reaches electrical connectors and causes intermittent faults with door locks, central locking, or warning lights. The fix involves replacing the tail light seals (€20-40 per side), clearing drainage channels, and drying out affected areas. If water has corroded wiring connectors, repair costs can reach €300-500. Regular inspection of the boot carpet for dampness is recommended.

The rear hatch gas struts on the Celica T23 have a typical lifespan of only 2-4 years before they weaken and can no longer hold the hatch open. This is an almost universal issue on any Celica over 5 years old. Replacement is straightforward and requires no tools. Aftermarket struts cost €20-30 per pair, while genuine Toyota struts are around €60-80 per pair. Installation takes 5-10 minutes. While this is a minor and inexpensive fix, it is worth noting that virtually every used Celica will need new struts if they have not been recently replaced.
