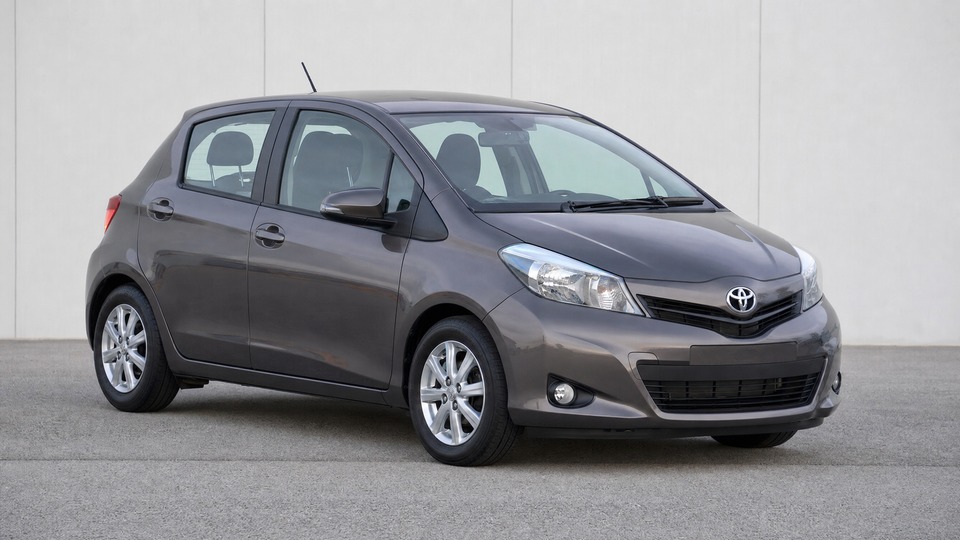

Toyota Yaris 1.0 VVT-i XP130

The 1KR-FE uses a single VVT-i actuator on the intake camshaft. Over time, the oil control valve (solenoid) can become contaminated with sludge or the actuator itself wears internally. This typically causes a brief rattle lasting 1-3 seconds on cold start as the cam phaser settles. On the XP130 generation, this is less common than on the earlier XP90 thanks to updated components. Most cases appear after 100,000-150,000 km, particularly if oil changes have been stretched beyond the recommended 15,000 km interval. Replacing the solenoid alone costs around €150-250 (parts and labour). If the actuator itself has worn, the repair involves removing the timing cover, and costs rise to €500-800. Using the correct oil viscosity (0W-20) and changing every 10,000-15,000 km significantly reduces this risk. Preventive cleaning of the VVT-i solenoid every 40,000 km is inexpensive insurance.

The 1KR-FE has three individual ignition coils. These are generally reliable but can fail after 80,000-120,000 km, particularly on cylinder 1 where water ingress from the windshield area can reach the spark plug well. Symptoms include rough running, check engine light with misfire codes (P0301 most common), and slight power loss. A known design weakness allows rainwater to pool on the valve cover and wick past the coil boot seal into the spark plug tube, causing fouling and eventual coil failure. The fix is straightforward: replace the affected coil (€25-40 aftermarket, €50-70 OEM per coil) and spark plug, and reseal the coil boot. Replacing all three coils plus spark plugs as a set costs €80-250 depending on parts quality. Sealing the coil boots to the valve cover with silicone helps prevent recurrence.

The 1KR-FE water pump is chain-driven and generally long-lasting, but some examples develop a slow coolant weep from the pump seal after 120,000-180,000 km. This is not a sudden failure - it typically presents as a gradual coolant level drop and a faint sweet smell. Catching it early prevents any engine damage. Replacement costs €250-500 including labour (2-3 hours due to accessibility), with the pump itself costing €60-120 depending on source. This is relatively uncommon on the XP130 generation and many examples reach well over 200,000 km on the original pump.

The exhaust system heat shields on the Yaris are thin pressed metal and prone to corrosion and loosening, particularly on cars used in areas with road salt. The rattle is most noticeable at certain RPM ranges, typically 2,000-3,000 RPM, and disappears at other speeds. While not a safety concern, it is annoying. The fix is usually a stainless steel hose clamp wrapped around the shield (€5-10 DIY), or replacement of the shield at a workshop for €50-200. On older models (2011-2014), this tends to appear after 6-8 years regardless of mileage.

The rear torsion beam suspension is simple and generally reliable, but the rubber bushings in the lower control arms can deteriorate after 100,000-150,000 km, particularly on cars that regularly encounter poor road surfaces. Symptoms include a knocking sound from the rear when driving over bumps or rough surfaces. Replacement of the bushings costs €150-400 depending on whether just the bushings or the entire arm is replaced. This is more of a wear item than a defect, and many cars reach 200,000 km without needing attention.
