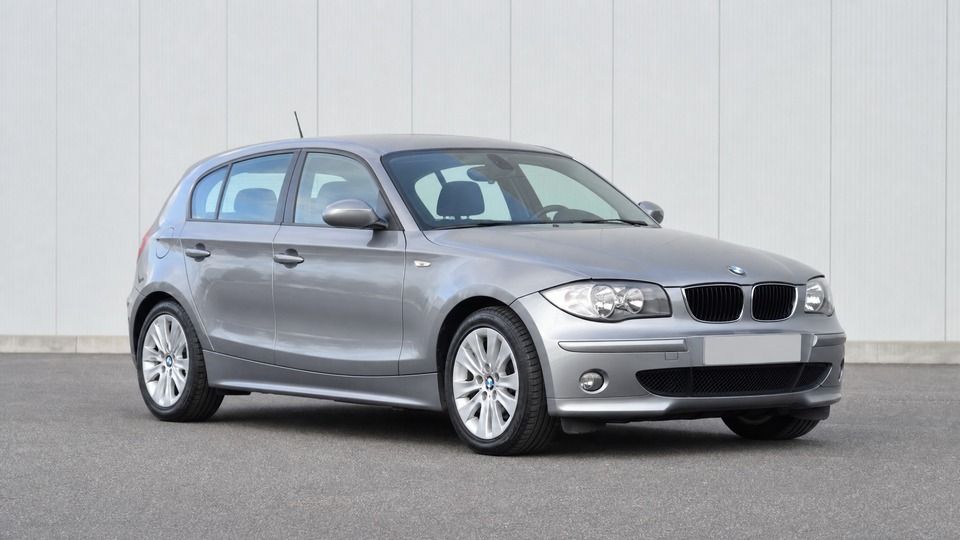

BMW 130i E87

The N52 uses an electric water pump with a plastic housing that is the most common significant failure on this engine. Forum data from BimmerFest and BabyBMW suggests roughly 30% of pumps fail by 150,000 km, often with little or no warning. When the pump fails, the engine loses cooling immediately and can overheat within minutes, risking head gasket or cylinder head damage if driving continues. A genuine BMW pump costs approximately €300-400, with quality aftermarket alternatives (Pierburg) from €200-280. Labor runs €150-300 depending on the shop. The thermostat should be replaced at the same time (adds €80-120 for the part). Many owners choose preventive replacement around 100,000 km. The coolant expansion tank and its associated hoses are secondary weak points, as the plastic becomes brittle with age and heat cycles.

This is one of the most common oil leak points on the N52 engine, with a near-100% failure rate on higher-mileage cars. The rubber gasket between the oil filter housing and the engine block hardens from repeated heat cycles and begins seeping oil. If ignored, the leak worsens and oil drips onto the serpentine belt, which can then carry oil to the front crank seal area, potentially causing significantly more expensive damage. The gasket itself costs under €20, but labor is typically 1.5-2.5 hours due to access constraints. Total repair at an independent shop runs €300-400, at a dealer €400-600. This is commonly replaced alongside the valve cover gasket to save on labor overlap.

The N52 integrates the crankcase ventilation (CCV) valve into the valve cover. Over time, the internal diaphragm deteriorates, increasing crankcase pressure and causing oil to be pushed past seals. Externally, the valve cover gasket itself hardens and leaks. Symptoms include visible oil around the valve cover edges, oil smell from the engine bay, and in advanced cases, oil consumption increases. On the N52, BMW does not sell the CCV separately from the valve cover, so the entire cover may need replacing. A genuine BMW valve cover with integrated CCV costs €250-400, aftermarket €100-200. Labor is 2-3 hours. Total repair runs €400-600 at an independent specialist, €600-800 at a dealer.

The N52 uses a 3-stage intake manifold with two DISA (Differentiated Intake System Adjustment) valves that optimize air intake at different RPM ranges. The internal flap mechanism wears over time, causing a loss of mid-range torque and sometimes a humming vibration felt through the accelerator pedal. Diagnostic codes P2014/P2015 indicate DISA problems. In rare but serious cases, the flap can break free and enter the intake ports, potentially causing valve or piston damage. Repair kits are available from €30-50 per valve, but accessing the interior DISA requires intake manifold removal. Complete replacement of both DISA valves with professional labor runs €400-800. If engine damage occurs from ingested debris, costs escalate significantly to €1,200+.

The N52's Valvetronic system adjusts valve lift continuously, eliminating the traditional throttle butterfly for improved efficiency. The eccentric shaft sensor can fail, producing fault codes and causing rough running or limp mode. The sensor itself costs €100-180, but replacement requires valve cover removal (1.5-2.5 hours labor), bringing the total to €300-500. If the Valvetronic motor itself fails, replacement costs €200-350 for the part plus similar labor. In rare cases, the eccentric shaft develops scoring, requiring more extensive work that can reach €1,500-1,800. VANOS solenoids can also clog with sludge, but cleaning or replacing them is a relatively simple job at €150-300 total.

The electronic steering lock (ELV) is a common failure across all E87/E90 generation BMWs. The lock mechanism can seize or its motor can fail, resulting in a 'steering lock fault' message and the car refusing to start. BMW's solution is replacement of the entire steering column assembly, costing approximately €700-900 at a dealer. However, specialist electronics repair services can refurbish or bypass the ELV unit for €300-500. Some owners have successfully resolved the issue by relieving steering wheel pressure before turning off the ignition, or by having the ELV counter reset via diagnostic software. This is not a safety issue as such, but it can leave you stranded.

The rear differential is mounted to the subframe via rubber bushings that are stressed by the 130i's 315 Nm of torque being channeled through a lightweight rear end. Over time, the rear bushing tears, allowing the differential to shift and clunk on throttle application and release. This is more common on 130i models driven enthusiastically. OEM bushings last 80,000-120,000 km typically. Replacement requires dropping the differential, with OEM bushings costing €50-100 for the set. Polyurethane or solid replacements from Powerflex or Revshift cost €60-120 and last longer but transmit more vibration. Total labor for bushing replacement runs €200-400 at an independent shop.
