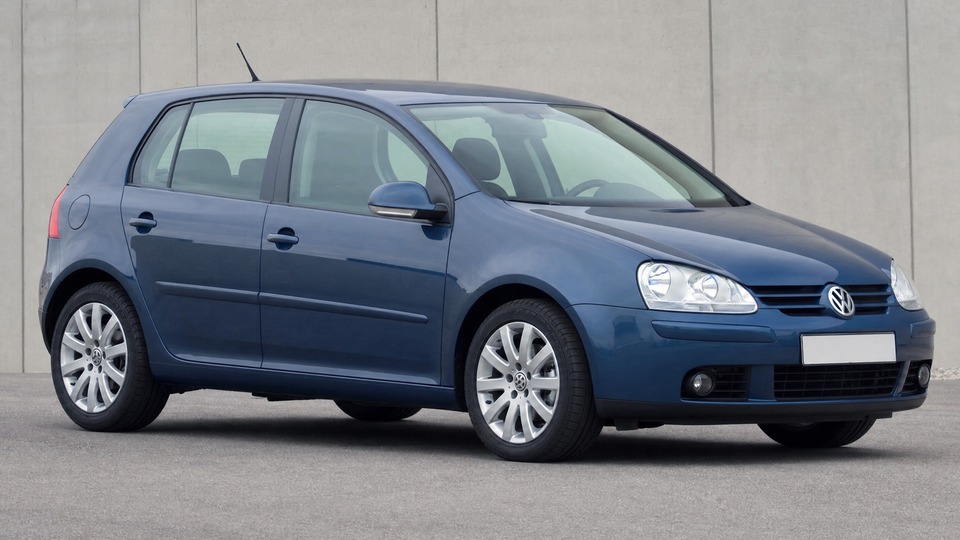

Volkswagen Golf Mk5 1.6 FSI

The 1.6 FSI uses a timing chain rather than a belt, but the upper chain tensioner is a known weak point. The tensioner has a release valve that allows oil to bleed off when the engine is stopped. After sitting overnight, there is insufficient tension on the chain for the first few seconds of cranking, producing a metallic rattling noise described as 'marbles in a tin can.' This typically begins between 80,000 and 130,000 km. If ignored, the chain can stretch and skip a tooth, causing catastrophic valve-to-piston contact. VW has released updated tensioner parts. A complete chain kit (chain, guides, tensioner, sprockets) plus labor costs approximately 800-1,500 euro depending on whether an independent shop or dealer performs the work. The job can be done with the engine in the car.

This is inherent to all FSI (direct injection) engines. Because fuel is sprayed directly into the combustion chamber rather than through the intake ports, there is no fuel washing over the intake valves to keep them clean. Over time, oil vapors from the PCV system bake onto the valve stems and ports, creating thick carbon deposits. By 80,000-100,000 km, deposits can become severe enough to restrict airflow, causing rough idle, misfires, loss of power, and increased fuel consumption. On the 1.6 FSI, this is particularly noticeable because the engine has modest power to begin with. Walnut shell blasting is the standard remedy, costing 400-800 euro at a specialist. Using quality oil and avoiding only short trips helps slow the buildup, but it cannot be fully prevented.

The EGR valve on the 1.6 FSI uses an electric motor with plastic internal gears. These gears are prone to stripping teeth, typically around 80,000-120,000 km. When the gears fail, the EGR valve cannot open or close properly, triggering the EPC warning light and potentially putting the car in limp mode. VW does not sell the motor separately - the complete EGR valve assembly must be replaced. Importantly, a new EGR valve must be programmed (adapted) to the engine ECU, or it will fail prematurely. Independent repair costs run 300-450 euro, while a VW dealer may charge up to 700 euro including adaptation.

The 1.6 FSI is known for consuming ignition coil packs at a higher rate than typical VW engines. Symptoms include misfires on one or more cylinders, rough idle, and the engine management light illuminating. Some owners have reported all four coils failing within a short period. Individual coil packs cost 15-40 euro each from aftermarket suppliers, or 40-60 euro each for OEM Bosch units. Labor is minimal as the coils are easily accessible on top of the engine. A full set of four with labor typically runs 100-350 euro depending on parts choice. Using super unleaded fuel (98 RON) is recommended to reduce the load on coils.

The intake manifold has variable-length runners controlled by a flap mechanism. The vacuum capsule that operates the flap can fail (diaphragm rupture or operating arm snap), or the flap itself can seize due to carbon deposits. This triggers a P2015 or P2004 fault code. Depending on which component has failed, repair can range from a simple vacuum solenoid replacement (around 100-200 euro) to a complete intake manifold replacement if the flap is seized internally (up to 900 euro at a dealer). VW often does not sell the actuator motor separately, pushing toward full manifold replacement. Independent specialists may be able to source just the motor or repair the existing unit for considerably less.

The FSI combustion process is demanding on exhaust sensors. The pre-catalytic converter lambda sensor can degrade, causing incorrect fuel mixture and increased consumption. The 1.6 FSI has two catalytic converters, each with its own sensor. Symptoms include the engine management light, poor fuel economy, and sometimes rough running. A single sensor costs 50-120 euro for aftermarket or 80-150 euro for OEM. Replacement labor is straightforward, typically under one hour. Using quality fuel (98 RON recommended) helps extend sensor life.

The Golf Mk5 uses an electric power steering system where the motor is integrated into the steering rack. The most common failure mode is water ingress into the rack housing, which corrodes the motor or control module. This was particularly common on early production cars (2003-2005) and those from the Brussels factory had a specific campaign (48G7) for rack replacement. Symptoms include intermittent heavy steering, the steering warning light illuminating, or complete loss of power assistance. A new rack from VW costs 1,200-1,500 euro fitted. Reconditioned units are available for 400-700 euro fitted. The rack must be reprogrammed to the car after replacement.
