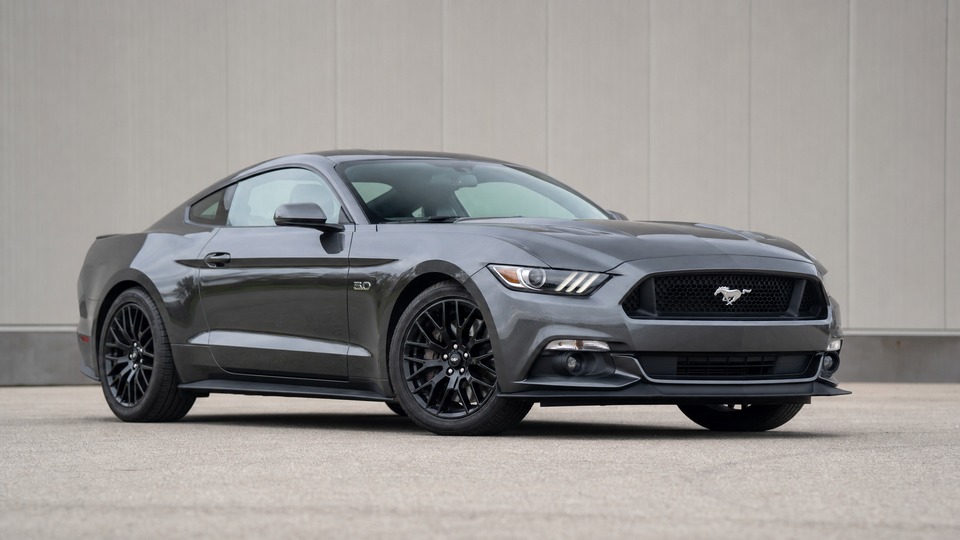

Ford Mustang GT S550

The S550 GT uses a plate-type heat exchanger where engine oil (at approximately 80 psi) and coolant (at approximately 20 psi) pass through alternating layers. The thin separator plates can rupture, allowing pressurized oil to flood into the coolant system. Once a plate fails, the oil pump rapidly empties the engine oil into the coolant in minutes. If caught immediately, a multi-step flush and new cooler costs around €800-1,500. If the engine runs dry and seizes, a replacement engine costs €6,000-8,000 installed. The issue was first documented on RHD (UK/Australian) models but has been confirmed on LHD European and US cars as well, particularly 2015-2019 models. Some owners preemptively upgrade to an air-to-oil aftermarket cooler. Monitor coolant appearance regularly for any brown or oily discoloration.

The Getrag MT82 6-speed manual has been the most discussed weakness of the Mustang GT. The 2015-2017 MT82 uses brass synchros and is generally reliable under normal use, though it can feel notchy. The 2018+ MT82-D4 was revised with a twin-disc clutch and stronger synchros, but the aluminum shift forks are prone to bending or breaking under aggressive use. Symptoms include grinding when shifting into 3rd or 4th gear, difficulty selecting gears, and metallic debris in the fluid. A rebuild with new synchros, bearings, and forks at a transmission specialist costs approximately €1,000-1,600. If gears or shafts are damaged, costs rise to €2,500-3,500. Some owners replace the MT82 entirely with a Tremec Magnum XL (approximately €4,000-5,000 including installation). The 10-speed automatic (10R80) on 2018+ models avoids this issue entirely but has its own shift quality concerns addressed by software updates.

A well-known characteristic of the Coyote engine across all generations. The tick manifests as an irregular metallic sound, often compared to a BBQ igniter or typewriter, and can appear at cold start or at idle. Ford has issued SSM 49761 acknowledging the noise in 2011-2021 Mustang and F-150 5.0L engines, stating it is not detrimental to engine function or durability. In the vast majority of cases, the tick is harmless and caused by direct injection system noise (Gen 3, 2018+), VCT solenoid operation, or normal valvetrain tolerances. Some owners report improvement with Liqui Moly Ceratec additive or switching to slightly heavier oil. However, in rare cases the tick can indicate a deeper issue such as worn cam phasers or connecting rod bearing wear, which would require engine teardown. If the tick is rhythmic and consistent with engine speed, have it diagnosed. A VCT solenoid replacement costs around €200-400. Full engine replacement for severe cases runs €6,000-8,000.

Primarily affects the Gen 2 Coyote engine (2015-2017). The intake manifold runner control valves use plastic connecting rods that can snap, preventing the runners from opening properly. Symptoms include P2004, P2005, or P200A fault codes, rough idle, and reduced power below 3,000 rpm. At higher RPM the effect is minimal since the runners should be open anyway. The 2018+ Gen 3 Coyote uses a revised intake design that largely eliminated this problem. Repair involves replacing the entire intake manifold (Ford does not sell the IMRC rods separately), costing approximately €800-1,200 at a dealer. Some resourceful owners have repaired the rods themselves for minimal cost using aftermarket fixes. An upgrade to a 2018+ manifold is also possible.

One of the most commonly reported chassis issues across all S550 model years. The front lower control arms use press-in ball joints that wear relatively quickly, especially on cars driven on poor road surfaces or that have been lowered. Symptoms include clunking noises when braking, a loose feeling in the steering, and uneven front tire wear. Typically appears between 50,000-80,000 km. Most shops replace the entire control arm assembly rather than pressing in new ball joints, as the taper is extremely tight and requires specialized tooling. A pair of aftermarket control arms costs approximately €150-250, with alignment and labor bringing the total to €400-600. Ford Performance or Steeda upgraded arms are recommended for improved longevity. OEM dealer replacement runs €600-900.

A design weakness primarily affecting 2015-2017 models, though later cars can be affected too. The rear shock absorber mounts to relatively thin sheet metal in the trunk area. Under heavy loads (potholes, lowered suspension, track use, or missing bump stops), the shock can punch through the mounting point. The result is a loud bang, loss of rear damping on that corner, and potentially dangerous handling. Ford's design places the mounting bolt in bending rather than the more typical tension-compression arrangement. Repair requires welding reinforcement plates or installing aftermarket Steeda/BMR billet shock mount reinforcements. Cost depends on whether body repair is needed. Prevention: avoid removing bump stops when lowering the car, and inspect the rear shock mount area during any pre-purchase inspection.

Oil pan gasket leaks are a documented issue on the Coyote engine. The gasket material deteriorates over time, leading to oil seepage around the pan. What makes this repair expensive is not the part (approximately €50-80 for the gasket) but the labor: the front subframe must be lowered and the engine supported separately to access the oil pan, resulting in 6-8 hours of labor. Total cost at a specialist is €600-1,000, at a Ford dealer €1,000-1,500. Note that the oil pressure sensor is also a common source of oil seepage on S550s and should be ruled out first, as its replacement is much cheaper (approximately €100-200). Typically occurs after 60,000-100,000 km.

A widespread quality issue across all S550 model years. The aluminum hood and fender panels develop corrosion underneath the paint, causing visible bubbling and peeling, particularly at the leading edge of the hood and where the fenders meet the bumper. Some owners have reported this appearing as early as 10,000 km. Ford's corrosion warranty (for 2015 models) only covers perforation, not surface corrosion, meaning bubbling is not covered. The 2016+ warranty was revised to address aluminum corrosion specifically, but coverage varies. A class-action lawsuit has been filed over Ford's paint warranty handling. Repair costs €500-1,000 per panel for professional respray. Ceramic coating at delivery is a worthwhile preventive measure for new purchases.
