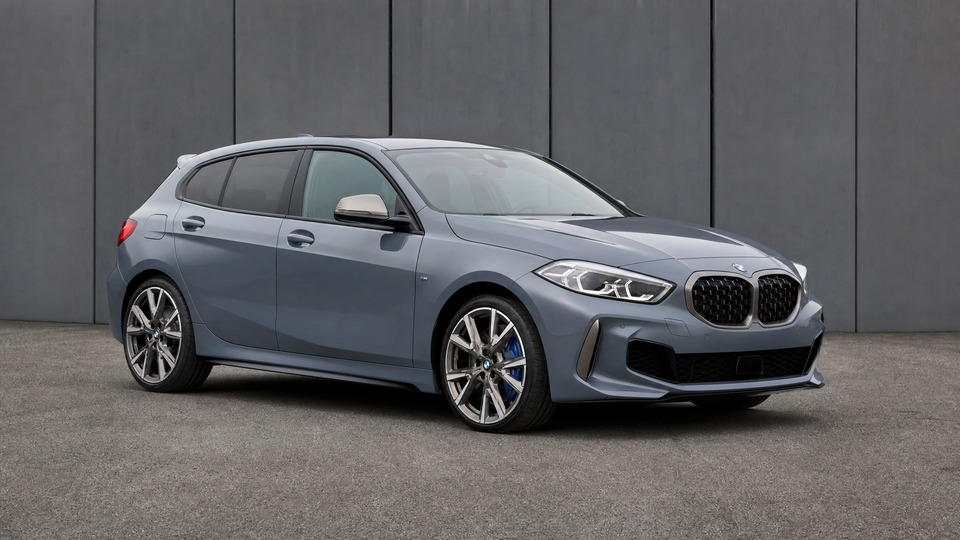

BMW M135i xDrive F40

The B48 uses a plastic oil filter housing that doubles as a heat exchanger (oil cooler). Repeated heating and cooling cycles cause the polycarbonate housing to become brittle and crack, typically between 80,000 and 130,000 km. Symptoms include oil drips under the car, burning oil smell, or coolant loss with no visible external leak. The housing sits beneath the intake manifold, making it labour-intensive to access. BMW parts cost around €300-400 for the housing; independent shops charge €800-1,200 total, while dealers quote €1,500-2,500. A US class-action lawsuit has been filed over this defect in B46/B48/B58 engines. Upgrading to an aluminium aftermarket housing during repair is recommended to prevent recurrence.

Many F40 M135i owners report a rattling noise from the turbocharger area, most noticeable during light to medium throttle as the engine warms up. BMW published a PuMA technical update acknowledging play in the turbocharger wastegate linkage. A permanent solution was expected in late 2022, but many owners report BMW dealers classify the noise as within acceptable limits. Some dealers have replaced the turbocharger entirely under warranty to resolve the noise. Out of warranty, turbo replacement costs €1,500-2,000. If the noise is purely cosmetic (no boost loss or fault codes), some owners choose to live with it. However, if accompanied by reduced boost or check engine lights, repair is necessary.

The B48 valve cover gasket is a common wear item that begins leaking around 80,000-100,000 km. The first symptom is usually a burning oil smell as oil seeps onto hot exhaust components. The gasket itself costs only €30-40, but the repair involves removing ignition coils, injectors, and multiple electrical connections. Independent shops typically charge €600-800 including parts; BMW dealers quote €900-1,200. Not an urgent failure, but should be addressed to prevent oil contamination of other components and reduce fire risk.

BMW uses a rigid plastic charge pipe connecting the turbocharger to the intercooler. Under high boost pressure, especially in hot weather or during spirited driving, this pipe can crack or burst at the throttle body flange. Symptoms are dramatic: a loud pop, immediate loss of power, and a drivetrain malfunction warning. The OEM replacement is another plastic unit (€100-150). Many owners fit an aluminium aftermarket charge pipe (€150-250 from manufacturers like FTP Motorsport or Forge) as a permanent fix. Total repair including fitting is €200-600. This is more common on tuned cars but can happen on stock vehicles.

The B48 uses an electric water pump with an integrated thermostat housing. The pump's internal seals and bearings degrade over time, typically failing between 100,000 and 150,000 km. Symptoms include coolant warning lights, engine overheating, or poor cabin heating in winter. The integrated design means the entire pump-thermostat assembly must be replaced. Parts cost €350-500; total repair is €600-900 at an independent shop, up to €1,400 at a BMW dealer. Proactive replacement during other cooling system work is recommended once the car exceeds 100,000 km.

Like all direct-injection petrol engines, the B48 accumulates carbon deposits on the intake valves because fuel is sprayed directly into the cylinder rather than washing over the valves. The M135i's higher boost and power output can accelerate this process. Symptoms develop gradually: rough idle, slight hesitation, reduced fuel economy, and eventual misfires. Walnut shell blasting is the standard cleaning method, recommended around 80,000-100,000 km. Cost is €400-800 depending on the shop. The B48 has better crankcase ventilation than older BMW engines, so buildup is slower than on the N20, but it remains an inevitable maintenance item on higher-mileage cars.
