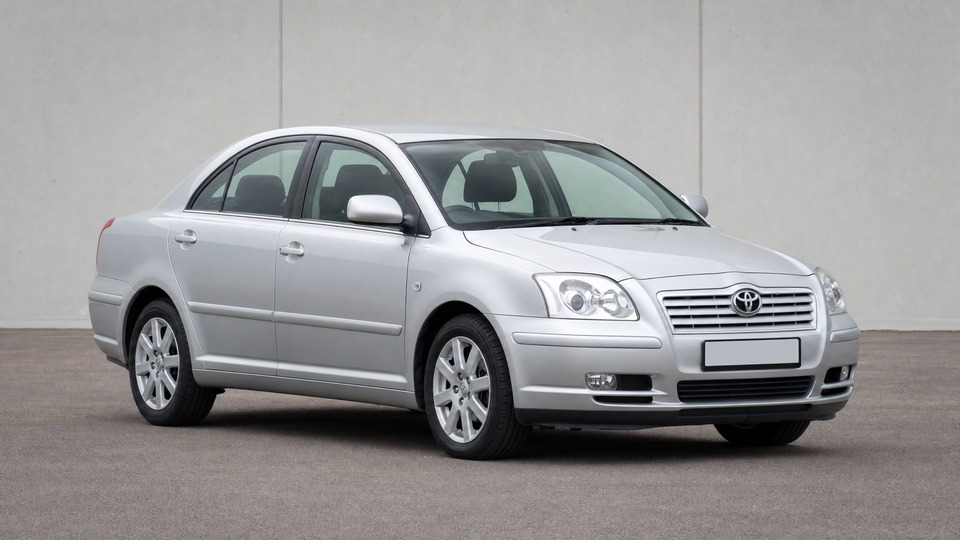

Toyota Avensis T25 2.0 D-4D

The EGR valve on the 1CD-FTV and 1AD-FTV engines gradually accumulates carbon deposits, especially on cars used predominantly for short trips. Symptoms include loss of power, black exhaust smoke, erratic idling, and in severe cases engine stalling at idle. Cleaning the valve (around €100-150 at a workshop) can resolve the issue temporarily, but the problem often returns within 20,000-30,000 km. A full replacement with a new OEM valve costs €250-450 for parts plus 1-2 hours labor. Many owners opt to blank off the EGR entirely (€50-100), which eliminates the issue but is not road-legal in most EU countries. This is the single most common complaint on Avensis D-4D forums.

The 1CD-FTV engine uses Denso common-rail injectors operating at very high pressure. Over time, the copper sealing washers between injectors and the cylinder head degrade, allowing combustion gases to leak into the injector wells. This causes oil contamination and sludge buildup in the sump oil pickup, which can lead to oil starvation. A single reconditioned injector costs around €150-250, with a full set of four running €600-1,000. Labor is approximately 2-3 hours. Until 2012, Denso repair kits were not available, making older repairs prohibitively expensive. Parts availability has improved significantly since then. Preventive replacement of copper washers during major servicing is recommended.

The Garrett GTA17V variable geometry turbocharger uses adjustable vanes to optimize boost across the rev range. Carbon and soot deposits cause these vanes to stick, particularly on cars driven gently or for short distances. Symptoms include sudden loss of boost, EPC/check engine light, and limp mode restricting power above 2,500 rpm. In mild cases, the turbo can be removed and cleaned (€300-600 including labor). If the actuator or internal components are damaged, a reconditioned turbo costs €800-1,200 fitted, while a new unit runs €1,500-1,800 installed. Regular motorway driving and occasional sustained high-RPM use helps keep the vanes moving freely.

The splines connecting the intermediate extension shaft to the steering gear develop play over time, particularly if the steering wheel is frequently turned to full lock at low speed (e.g., parking). This produces a noticeable knocking or rattling noise when cornering. Toyota issued a recall for certain models built between August 2002 and October 2008 covering the electric power steering system. An intermediate shaft replacement costs approximately €150-300 for parts plus 1-2 hours labor. If the steering rack itself is worn, replacement costs €600-1,200 at an independent shop.

The hexagonal rod adjusters on the rear lower control arms are particularly prone to severe corrosion, especially on cars driven in countries that use road salt. Advanced corrosion can make it impossible to adjust rear wheel alignment and eventually compromise structural integrity. A full rear subframe kit with trailing arms and bushings costs around €400-700 for parts. In extreme cases where the rear beam itself is corroded through, replacement costs including labor can reach €1,000-1,200. Northern European and UK cars are most affected. Inspect the underside thoroughly on any T25 over 15 years old.

The post-2006 facelift models with the 1AD-FTV engine are equipped with a DPF. Cars used predominantly for urban driving and short trips under 20 minutes fail to reach the exhaust temperatures needed for passive regeneration. When the DPF becomes excessively loaded, the engine management initiates active regeneration (injecting extra fuel), which can cause a fuel smell in the cabin and rough running. If active regeneration also fails, the DPF warning light illuminates and power is restricted. Professional chemical cleaning costs €200-400. A new DPF costs €800-1,200 including fitting. Pre-facelift models with the 1CD-FTV engine (2003-2006) do not have a DPF and are not affected.

The 2.0 D-4D uses a dual mass flywheel (DMF) to dampen engine vibrations. At high mileages (typically beyond 150,000-200,000 km), the DMF springs weaken, producing a metallic rattling at idle with the clutch engaged and juddering during low-speed manoeuvres. While the DMF can fail suddenly, it more commonly degrades gradually. A combined DMF and clutch kit replacement costs approximately €800-1,500 at an independent garage (parts €400-700 for an aftermarket DMF + clutch kit, plus 4-6 hours labor). Some owners convert to a solid flywheel kit to avoid future DMF issues, though this increases NVH slightly.
